Bathymetrisches Datenzentrum: Bathymetrie der SONNE-Reise SO 296/2
Bathymetric Data Centre: Bathymetry of SONNE cruise SO 296/2

Fahrtleitung
Chief Scientist		 Prof. Dr. Heide Schulz-Vogt
Vermessungszeitraum
Survey Period 		2023/01/21 - 2023/02/21
Auslaufhafen
Port of Departure 		Talcahuano / Chile
Einlaufhafen
Port of Arrival 		San Vicente / Chile
Institution
Institution 		IOW
Positionierungssystem
Positioning System
Primäre Navigation
Prime Navaid 		GPS/GLONASS
Sekundäre Navigation
Secondary Navaids 		GPS/GLONASS, GPS
Fehlerabschätzung
Accuracy Assessment 		<20m. Permanent checks by nautical officers and computer staff. DGPS corrections.
Horizontales Datum
Horizontal Datum 		WGS 84
Tiefenbestimmungssystem
Bathymetric System 		SIMRAD EM122, SIMRAD EM710, SIMRAD EK80, ATLAS PARASOUND
Vertikales Datum
Vertical Datum 		Sea Level.
Datendistribution
Dataset Distribution
Verteiler
Distributor 		Bundesamt für Seeschifffahrt und Hydrographie
Neptunallee 5, 18057 Rostock
Datenmedium
Data Medium 		Compact Disc - CD
Digital Versatile Disc - DVD
File Transfer Protocol - FTP
Zitat
Citation 		Bathymetriedaten der Reise SO 296/2 des Forschungsschiffes SONNE.
Herausgeber: Leibniz-Institut für Ostseeforschung Warnemünde, Rostock-Warnemünde 2023
DOD-Referenz
DOD-Reference 		20230030

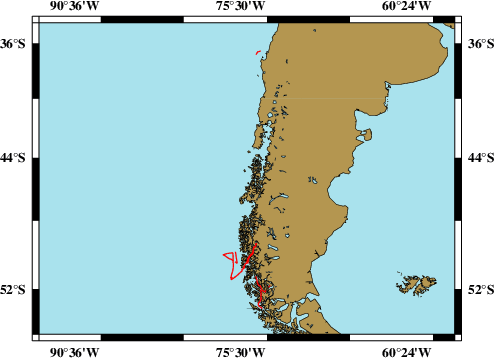

Datensatz SO296-2.202301.A
Dataset SO296-2.202301.A		 Eingangsdatum: 2023/04/03
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area
Multibeam Data, Binary 9855 MByte 1400 Survey line SO296/2
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
SIMRAD EM122 (ALL & WCD) Postprocessing software Quimera. Position- and depth processing. Keel sound velocities applied for beam forming. Sound velocity profiles have not continously been applied. Data needs to be retraced against final CTD-derived sound velocity profiles.

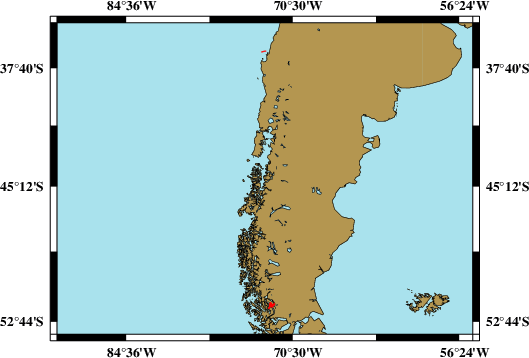

Datensatz SO296-2.202301.B
Dataset SO296-2.202301.B		 Eingangsdatum: 2023/04/03
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area
Multibeam Data, Binary 42355 MByte 450 Survey line SO296/2
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
SIMRAD EM710 (ALL & WCD) Postprocessing software Quimera. Position- and depth processing. Keel sound velocities applied for beam forming. Sound velocity profiles have not continously been applied. Data needs to be retraced against final CTD-derived sound velocity profiles.


Datensatz SO296-2.202301.C
Dataset SO296-2.202301.C		 Eingangsdatum: 2023/04/03
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area
Singlebeam Data, Binary 3177940 MByte Survey line SO296/2
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
SIMRAD EK80 (IDX & RAW) No information. No information.

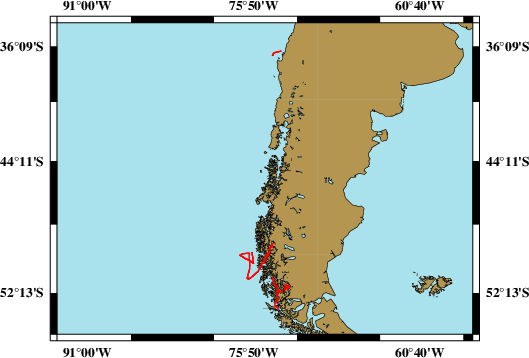

Datensatz SO296-2.202301.D
Dataset SO296-2.202301.D		 Eingangsdatum: 2023/04/03
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area
Sediment Acoustic Data, Binary 35410 MByte (ASD.ACF-PHF)
34647 MByte (ASD.ACF-SLF)
7092 MByte (PS3-PHF)
17988 MByte (PS3-SLF)
970 MByte (SEGY-PHF)
18547 MByte (SEGY-SLF)		 - Survey line SO297
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
ATLAS PARASOUND (ASD.ACF & PS3 & SEGY) No information. No information.
