Bathymetrie der SONNE-Reise SO 247
Bathymetry of SONNE cruise SO 247

Fahrtleiter
Chief Scientist		 Prof. Dr. Katrin Huhn
Vermessungszeitraum
Survey Period 		2016/03/27 - 2016/04/27
Auslaufhafen
Port of Departure 		Wellington / New Zealand
Einlaufhafen
Port of Arrival 		Auckland / New Zealand
Institution MARUM
Positionierungssystem
Positioning System
Primäre Navigation
Prime Navaid 		Glonass/GPS
Sekundäre Navigation
Secondary Navaids 		GLONASS/GPS; GPS
Fehlerabschätzung
Accuracy Assessment 		<20m - Permanent checks by nautical officers and computer staff. DGPS corrections.
Horizontales Datum
Horizontal Datum 		WGS-84
Tiefenbestimmungssystem
Bathymetric System 		SIMRAD EM122, SIMRAD EM710, ATLAS PARASOUND
Vertikales Datum
Vertical Datum 		Sea Level.
Datendistribution
Dataset Distribution
Verteiler
Distributor 		Bundesamt für Seeschifffahrt und Hydrographie
Neptunallee 5, 18057 Rostock
Datenmedium
Data Medium 		Compact Disc - CD
Digital Versatile Disc - DVD
File Transfer Protocol - FTP
Zitat
Citation 		Bathymetriedaten der Reise SO247 des Forschungsschiffes Sonne.
Herausgeber: MARUM | Zentrum für Marine Umweltwissenschaften, Universität Bremen, Bremen 2016
DOD-Referenz
DOD-Reference 		20160008

Datensatz SO247.201603.A
Dataset SO247.201603.A 		Eingangsdatum: 2016/05/13
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area

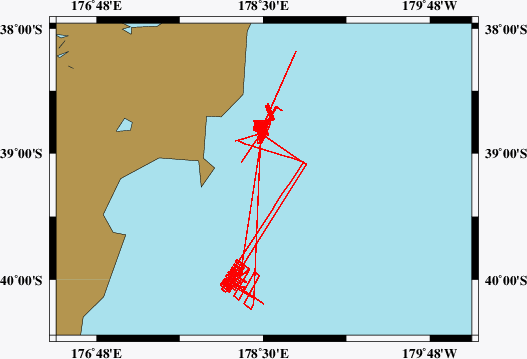

Multibeam Data, Binary 64112 MByte 3950 Vermessungsroute SO247
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
SIMRAD EM122 (RAW&WCD) Postprocessing software MB-System. Position an depth processing. A function sound velocity profile is used during the survey. Check is used permanently during the survey.

Datensatz SO247.201603.B
Dataset SO247.201603.B 		Eingangsdatum: 2016/05/13
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area

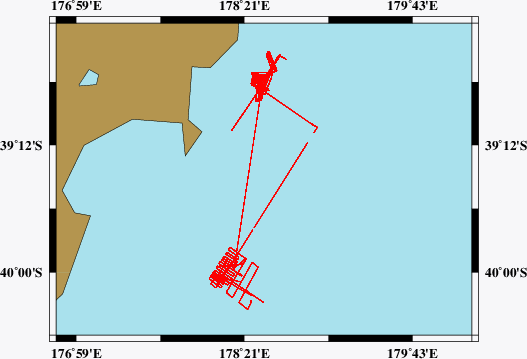

Multibeam Data, Binary 5868 MByte 250 Vermessungsroute SO247
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
SIMRAD EM710 (RAW&WCD) Postprocessing software MB-System. Position an depth processing. A function sound velocity profile is used during the survey. Check is used permanently during the survey.

Datensatz SO247.201603.C
Dataset SO247.201603.C 		Eingangsdatum: 2016/05/13
Date of Receipt
Datenart
Data Type 		Datenmenge
Data Amount 		Lotungskilometer
Surveyed Kilometres 		Seegebiet
Sea Area

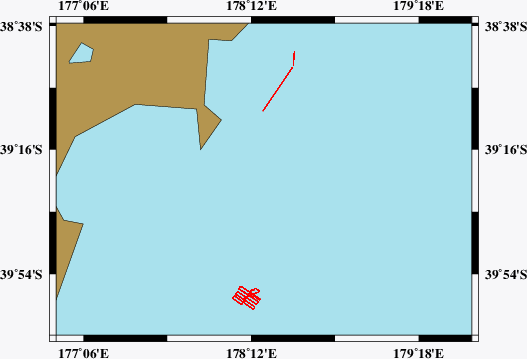

Sediment Acoustic Data, Binary 46789 MByte (ASD.ACF-PHF)
56674 MByte (ASD.ACF-SLF)
6835 MByte (PS3-PHF)
10005 MByte (PS3-SLF)
11794 MByte (SEGY-PHF)
19796 MByte (SEGY-SLF) 		- Vermessungsroute SO247
Datenformat
Data Format 		Datenprozessierung
Data Processing 		Schallgeschwindigkeitskorrektur
Sound Velocity Correction
ATLAS PARASOUND (ASD.ACF & PS3 & SEGY) No information. No information.
